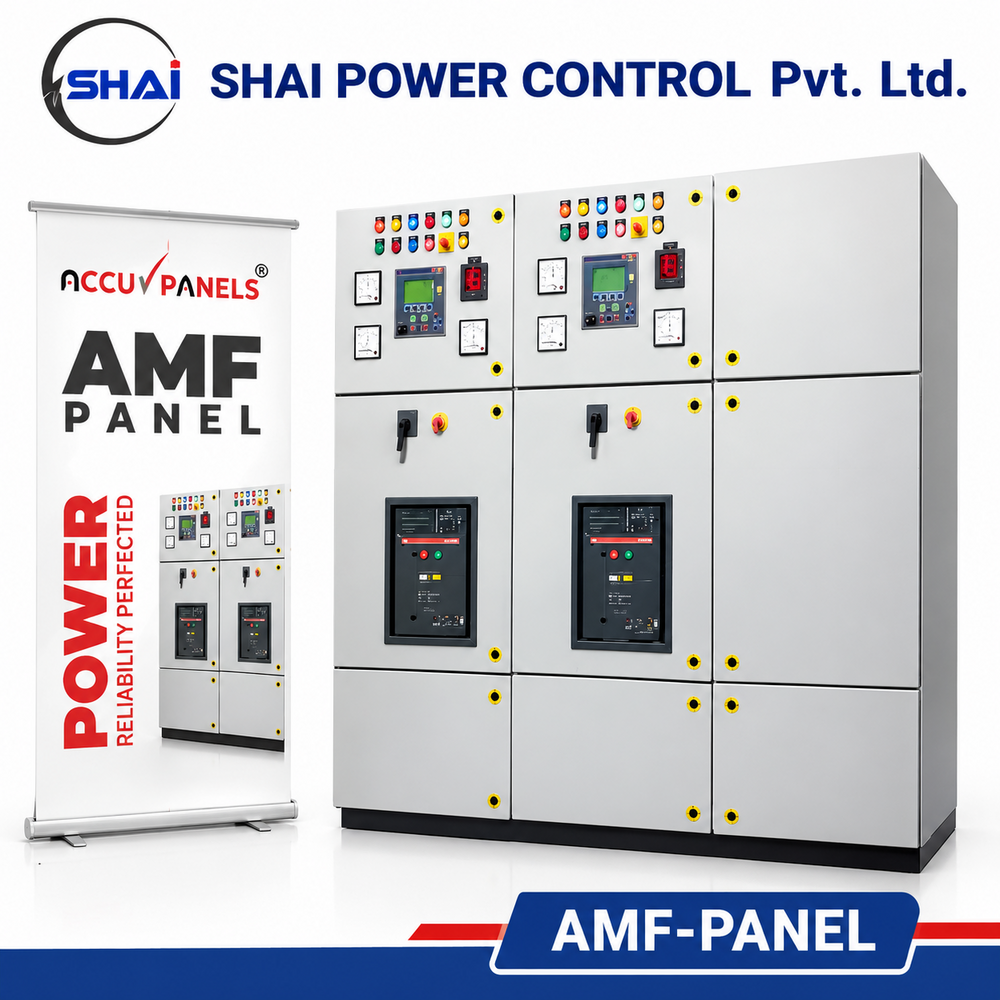

AMF Automatic mains failure Panel

Get a Price/Quote

MOQ : 1 Unit

AMF Automatic mains failure Panel Specification

Rated Current
Up to 6300A

Operating Voltage
415V

Thickness
1.6 mm - 2.5 mm

Cabinet Material
CRCA Steel

Rated Operation Voltage
415V

Features
Automatic switching, Generator protection, Manual and Auto mode, Phase Sequence Indication, Overload and Short Circuit Protection

Protection Class
Class I

Current Rating
Up to 6300A

Components
MCB, MCCB, Contactors, Relays, Meters, Timer, Indicators, Push Buttons

Base Material
Mild Steel

Rated Insulation Voltage
660V

Connectivity Type
Wired, Optional Remote Monitoring via GSM/GPRS

Cover Material
Powder Coated Sheet Metal

Protection Level
IP42/IP54/IP65

Way
Multiple ways as per requirement

Control System
Microprocessor/PLC based

Cooling System
Natural/Forced Air Ventilation

Panel Type
AMF Panel

Product Type
Auto Mains Failure (AMF) Panel

Material
Other

Surface Finish
Powder Coated

Standard
IEC 61439 / IS 8623

Surface Color
Grey/White/Customized

Rated Voltage
415V AC

Frequency (MHz)
50 Hz

Maximum Output Current
Up to 6300A

Dimension (L*W*H)
Customizable as per project

Application
Automatic changeover between mains and generator

IP Rating
IP42/IP54/IP65

Display Type
LED/LCD Digital Display

Ambient Temperature Range
-10C to +55C

Compliance
CE Marked/ISO 9001:2015 Certified

Design
Modular and Compact for easy installation

Busbar Material
Electrolytic Grade Copper/Aluminum

Operating Humidity
Up to 95% RH non-condensing

Earthing Provision
Dual Earth Bus as per standards

Mounting Type
Floor Mounted/Wall Mounted (optional)

Cable Entry
Top or Bottom as per site requirement

AMF Automatic mains failure Panel Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Units Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About AMF Automatic mains failure Panel

Discover the premier AMF Panel, engineered with Electrolytic Grade Copper/Aluminum busbars and dual earth bus for incomparable reliability. This distinguished solution offers modular, compact design, customizable dimensions, and both floor or wall mounting for easy installation. Enjoy best price offers on a CE Marked, ISO 9001:2015 Certified panel, constructed from robust CRCA sheet steel with a powder-coated finish in your preferred color. Utilise this offer to secure an IP42/IP54/IP65 rated panel, suitable for a wide ambient temperature range. Popular for its automatic switching, generator protection, and advanced connectivity, this AMF panel ensures seamless operation up to 6300A, tailored to your project needs.

AMF Panel: Application Media, Areas, and Commercial Uses

The AMF Panel is widely utilized as an automatic changeover solution between mains power and generators, ensuring consistent power supply in critical situations. Its application spans commercial complexes, hospitals, industries, and infrastructure projects where reliable power management is essential. The panel's adaptable design supports various media, including wired connectivity and optional remote monitoring, making it a popular choice for system integrators and facility managers aiming to optimize power safety and continuity.

Packaging Details, Export Markets, and Stock Availability

Each AMF Panel is securely packaged to prevent transit damage, with exchange-ready stock maintained for rapid dispatch. Packaging meets export standards, ensuring safe delivery overseas. The panels are available for supply in bulk, catering to high-volume demands in India and international markets across Asia, Africa, and the Middle East. With stock ready and supply ability robust, we facilitate prompt order fulfillment, ensuring customers receive reliable products tailored to their commercial needs swiftly.

FAQ's of AMF Panel:

Q: How does the AMF Panel facilitate automatic changeover?

A: The AMF Panel automatically senses a power failure and seamlessly switches the load from the mains to the generator, ensuring uninterrupted power supply and protecting sensitive equipment from outages.

Q: What are the core benefits of using a CE Marked, ISO Certified AMF Panel?

A: Using a certified AMF Panel guarantees adherence to international safety and quality standards, enhancing operational reliability and reducing the risk of downtime or electrical hazards in commercial environments.

Q: Where can this AMF Panel be installed?

A: The AMF Panel's modular and compact design allows for both floor mounting and wall mounting, making it suitable for installation in diverse locations, from plant rooms to commercial building basements and electrical closets.

Q: What is the process for customizing an AMF Panel to project requirements?

A: Customers can specify dimensions, busbar material, current rating, and other features when placing an order. Our team will design and manufacture the panel to match precise project specifications, ensuring optimal performance.

Q: How is the AMF Panel packaged for export to ensure product integrity?

A: Each panel is packaged in robust materials, including foam padding and reinforced crates, to protect against transit shocks and moisture, ensuring the panel reaches its destination in optimal condition.

Q: Which commercial areas benefit most from utilizing this AMF Panel?

A: Industries, hospitals, commercial complexes, and data centers benefit significantly from AMF Panels, as they depend on continuous, automated power management to maintain operations and safeguard critical equipment.
